Nama : Genijayanti Waruwu
Kelas : 12.4A.05
Nim : 12190279
Tugas : Pertemuan 7

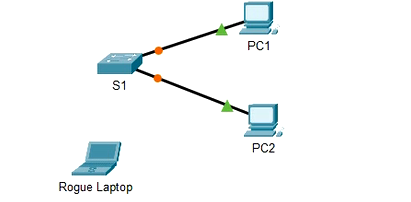

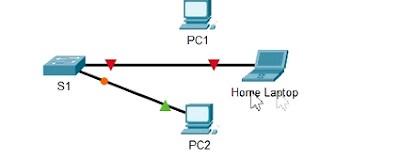

A. Troubleshooting Switch Port Security

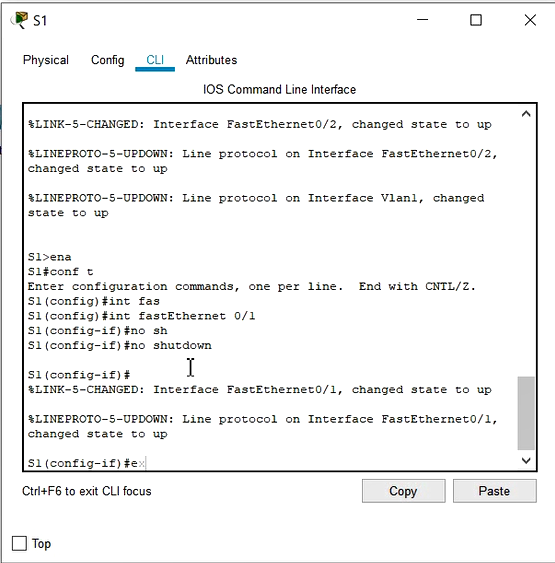

S1>ena
S1#conf t
S1(config)#int fast0/1
S1(config-if)#no shut
S1(config-if)#exit
Selanjutnya Ping
ping pc1 ke pc2
ping pc2 ke pc1
B. Configuring Switch Port Security
S1>ena
S1#conf t
S1(config)#interface range fa0/1-2
S1(config-if)#switchport port-security max 1
S1(config-if)#switchport port-security mac-address sticky
S1(config-if)#switchport port-security violation restrict
S1(config-if)#exit
S1(config)#interface range fast0/3-24
S1(config-if)#shut
S1(config-if)#exit
S1(config)#interface range gig0/1-2
S1(config-if)#shut
S1(config-if)#exit
Ping PC1 to PC2
ping 10.10.10.11
Ping PC2 to PC1
ping 10.10.10.11
C. Configuring OSPFv2 in a Single Area
R1>ena
R1#conf t
R1(config)#route ospf 10
R1(config-router)#router-id 1.1.1.1
R1(config-router)#network 172.16.1.0 0.0.0.255 area 0
R1(config-router)#network 172.16.3.0 0.0.0.3 area 0
R1(config-router)#network 192.168.10.4 0.0.0.3 area 0
R1(config-router)#passive - interfaces gigabitethernet 0/0
R1(config-router)#exit
R1#sho run
R2>ena
R2#conf t
R2(config)#route ospf 10
R2(config-router)#router-id 2.2.2.2
R2(config-router)#network 172.16.2.0 0.0.0.255 area 0
R2(config-router)#network 172.16.3.0 0.0.0.3 area 0
R2(config-router)#network 192.168.10.8 0.0.0.3 area 0
R2(config-router)#passive - interfaces gigabitethernet 0/0
R2(config-router)#exit
R2#sho run
R3>ena
R3#conf t
R3(config)#route ospf 10
R3(config-router)#router-id 3.3.3.3
R3(config-router)#network 192.168.1.0 0.0.0.3 area 0
R3(config-router)#network 192.168.10.4 0.0.0.3 area 0
R3(config-router)#network 192.168.10.8 0.0.0.3 area 0
R3(config-router)#passive - interfaces gigabitethernet 0/0
R3(config-router)#exit
R3#sho run
